Solar panels convert sunlight into electricity using photovoltaic cells. They are the cornerstone of any off-grid system, and advanced models incorporate features like bypass diodes and microinverters to optimize performance in partially shaded or variable conditions.

Sizing Your Array

The number and capacity of panels needed depend on your daily energy consumption, local peak sun hours, and overall system efficiency. Many advanced systems are designed to cover up to 8–9 months of energy needs on solar power alone—accounting for seasonal variations.

Seasonal Considerations

In winter or during extended cloudy periods, solar output decreases. To ensure adequate power during these times, additional sources like backup generators or wind turbines are often integrated into the overall design.

Batteries store the electricity generated by your solar panels so that power is available at night or during overcast conditions. They act as a buffer to balance generation and consumption, ensuring a steady, reliable power supply.

Choosing the Right Battery

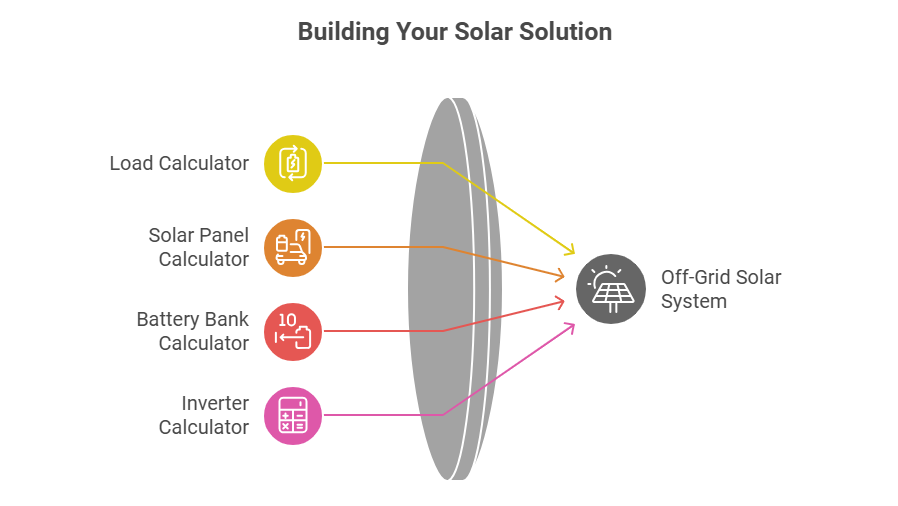

Advanced systems typically utilize deep-cycle lead-acid or modern lithium (LiFePO4) batteries. Key considerations include the battery’s depth of discharge (DoD), cycle life, maintenance requirements, and temperature sensitivity. Using a Battery Bank Calculator can help determine the optimal capacity based on your energy needs and desired days of autonomy.

The power center is the nerve center where all major components converge. It houses your inverter, charge controller, and distribution panels, ensuring that energy is efficiently converted and managed.

Integrated Components

• Inverter: Converts DC power to AC power for home appliances.
• Charge Controller: Regulates the power input to protect batteries from overcharge and inefficiencies.
• Monitoring Systems: Provide real-time performance data, enabling fine-tuning and proactive maintenance.

Pro Tip: For those without extensive electrical expertise, opting for a pre-assembled power center can minimize wiring errors and benefit from manufacturer warranties.

Proper mounting is crucial for maximizing energy capture. A well-designed racking system ensures that your panels are optimally tilted and oriented to receive the maximum sunlight throughout the year.

Installation Options

• Roof Mounting: Best suited for urban or space-limited environments. It requires careful planning to ensure structural integrity and adherence to local codes.
• Ground Mounting: Offers flexibility to adjust the tilt seasonally and is often preferred in rural areas.

Enhancing your core system with additional equipment can improve overall performance, safety, and convenience.

• Backup Generators: Provide supplementary power during prolonged low-sun conditions or high-demand periods.
• Water Pumps and Filtration: Essential for maintaining an off-grid water supply in remote settings.
• Efficient Appliances: Energy-efficient devices reduce overall system load and optimize operating costs.
• Lightning Protection and Grounding: Protect your system from voltage surges and adverse weather conditions.

Routine maintenance like cleaning panels and monitoring battery health is critical to prolonging system life.

RV and marine solar systems share many core components with residential off-grid setups but face unique challenges. Limited space, constant movement, and environmental factors like vibration or corrosion require specialized designs.

• Limited Panel Space: Compact, modular arrays are essential in confined areas and may rely on supplemental power sources.
• Corrosion and Vibration: Components need to be robust and corrosion-resistant, with secure mounting to withstand continuous movement.
• Enhanced Grounding: Specialized grounding solutions are critical to ensure safety and longevity in dynamic environments.
